Design Work Completed
·1 min

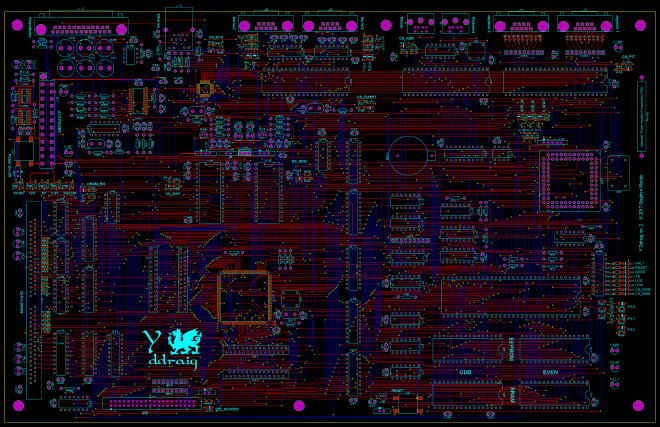

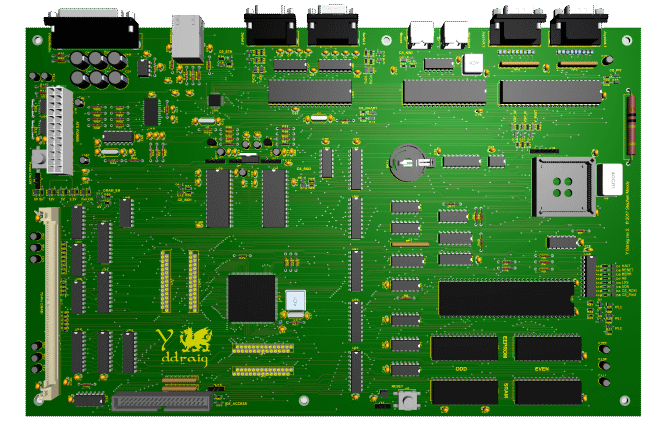

The schematic is complete, and after many hours of routing, the PCB layout is finally finished and ready to head off for manufacturing.
Board Specs:
- Layers: 4
- Size: 380mm x 240mm
- Vias: 1615
- Holes: 3438
- Traces: 4627
I’ve chosen EasyEDA for manufacturing, as their pricing for a 4-layer board of this size was very reasonable.
Once the boards arrive, I’ll share an update with photos and first impressions.
